CNC machining can produce parts from almost any metal or plastic. This being the case, there’s a huge range of materials available for parts produced via CNC milling and turning. Selecting the right one for your application can be quite a challenge, and understanding the advantages and best uses of each material available can be crucial.
In this article, we compare the most common CNC materials, in terms of mechanical and thermal properties, cost and typical (and optimal) applications.
Did you know we offer local sourcing for CNC machining?
How do you select the right CNC materials?
When you’re designing a part to be CNC machined, choosing the right materials is essential. Here are the basic steps we recommend following to select the right materials for your custom parts.
-
Define the material requirements: These can include mechanical, thermal or other material requirements, as well as cost and surface finish. Consider how you’ll be using your parts and what sort of environment they’ll be in.
-
Identify candidate materials: Pin down a few candidate materials that fulfill all (or most) of your design requirements.
-
Select the most suitable material: A compromise is usually required here between two or more of the design requirements (for example, mechanical performance and cost).
In this article, we will focus on step two. Using the information presented below, you can identify the materials that are most suitable for your application, while keeping your project on budget.
What are Protolabs Network's guidelines for choosing materials for CNC?
In the tables below, we summarize the relevant characteristics of the most common CNC materials, gathered by examining the datasheets provided by the material manufacturers. We split metals and plastics into two distinct categories.
Metals are mainly used in applications that require high strength, hardness and thermal resistance. Plastics are lightweight materials with a wide range of physical properties, often used for their chemical resistance and electrical insulation capabilities.
In our comparison of CNC materials, we focus on mechanical strength (expressed as tensile yield strength), machinability (the ease of machining affects CNC pricing), cost, hardness (mainly for metals) and temperature resistance (mainly for plastics).
Here is an infographic that you can use as a quick reference to quickly identify CNC materials that fit specific engineering needs:
Material | Grade | Strength* | Hardness+ | Machinability | Cost | Typical applications |
---|---|---|---|---|---|---|
Aluminum | 6061 | Medium | Medium | ★★★★★ | $ | General purpose Aircraft components Automotive parts Bicycle frames Food containers |
6082 | Medium | Medium | ★★★★★ | $ | General purpose Automotive parts Food containers | |
7075 | High | Medium | ★★★★ | $$$ | Aircraft & aerospace components Automotive parts Marine applications Sports equipment | |
5083 | Medium | Low | ★★★★★ | $$ | Marine applications Construction Pressure vessels | |
Stainless steel | 304 | High | Medium | ★★ | $$$ | General purpose Medical devices Food industry Marine applications Chemical processing |
316 | High | Medium | ★★ | $$$$ | Food preparation equipment Marine applications Architecture Surgical implants Chemical containers | |
2205 Duplex | High | High | ★ | $$$$$ | Oil & gas Marine applications Chemical processing Heat exchangers | |
303 | High | High | ★★★ | $$$$ | Aircraft components Machine parts Nuts, bolts, gears, bushings | |
17-4 | High | Very High | ★★ | $$$$$ | Turbine blades Marine applications Chemical vessels Oil & Gas Nuclear applications | |
Mild steel | 1018 | Medium | Medium | ★★★ | $$ | General purpose Machinery parts Jigs & fixtures |
1045 | Medium | High | ★★ | $$$ | General purpose Machinery parts | |
A36 | High | Medium | ★★★ | $$ | Construction Machinery parts Jigs & fixtures | |
Alloy steel | 4140 | Medium | High | ★★ | $$$ | General purpose Machinery parts Tooling |
4340 | High | High | ★★ | $$$ | Aircraft landing gear Power transmission Tooling | |
Tool steel | D2 | High | Very High | ★ | $$$$ | Cold-working tooling Dies & stamps Cutting tools & knives |
A2 | High | Very High | ★ | $$$$ | Cold-working tooling Dies & stamps Cutting tools & knives | |
O1 | High | Very High | ★ | $$$$ | Cold-working tooling Dies & stamps | |
Brass | C36000 | Medium | Medium | ★★★★★ | $$ | Mechanical parts Valves & nozzles Architecture |
- : Tensile Yield Strength - Medium: 200-400 MPa, High: 400-600 MPa
- : Hardness - Medium: 50-90 HRB, High: 90 HRB - 50 HRC, Very High: above 50 HRC
Material | Strength* | Operating temperature+ | Machinability | Cost | Typical applications |
---|---|---|---|---|---|
ABS | Medium | Up to 60oC | ★★★ | $$ | Automotive Electronic enclosures Pipes & fittings Consumer products |
Nylon | High | Up to 100oC | ★ | $$ | Automotive parts Mechanical parts Fasteners |
Polycarbonate (PC) | High | Up to 120oC | ★★ | $$ | Architecture Automotive Electronic enclosures Food containers |
POM (Delrin) | Medium | Up to 82oC | ★★★★ | $$ | Mechanical parts Electronic enclosures Bushings & fittings |
PTFE (Teflon) | Low | Up to 260oC | ★★★★ | $$ | High-temperature applications Chemical processing Electronic enclosures Food processing |
HDPE | Low | Up to 80oC | ★ | $$ | Chemical containers Pipes & fittings Consumer products |
PEEK | High | Up to 260oC | ★★ | $$$$ | Medical applications Chemical processing Food processing High-pressure valves |
- : Tensile Yield Strength - Low: 5-30 MPa, Medium: 30-60 MPa, High: 60-100 MPa
- : Recommended maximum operating temperature for constant use

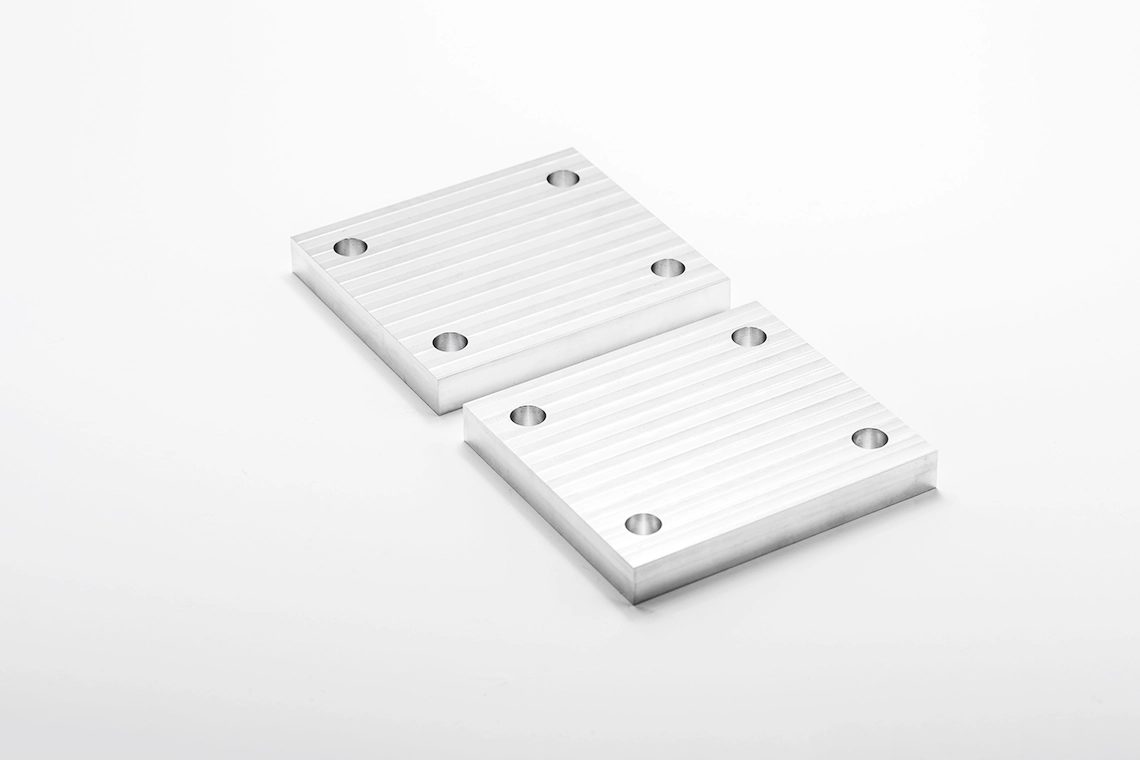

What is aluminum? The robust, economical alloy
Aluminum alloys have an excellent strength-to-weight ratio, high thermal and electrical conductivity and natural protection against corrosion. They are easy to machine and cost-efficient in bulk, often making them the most economical option for producing prototypes and other types of parts.
While aluminum alloys typically have lower strength and hardness than steels, but they can be anodized, creating a hard, protective layer on their surface.
Let’s break down the different types of aluminum alloys.
-
Aluminum 6061 is the most common, general-use aluminum alloy, with a good strength-to-weight ratio and excellent machinability.
-
Aluminum 6082 has a similar composition and material properties to 6061. It’s more commonly used in Europe (as it complies with British Standards).
-
Aluminum 7075 is the alloy most commonly used in aerospace applications where weight reduction is critical. It has excellent fatigue properties and can be heat treated to high strength and hardness, making it comparable to steels.
-
Aluminum 5083 has higher strength than most other aluminum alloys and exceptional resistance to seawater. This makes it optimal for construction and marine applications. It’s also an excellent choice for welding.
Material characteristics:
-
Typical density of aluminum alloys: 2.65-2.80 g/cm3
-
Can be anodized
-
Non-magnetic

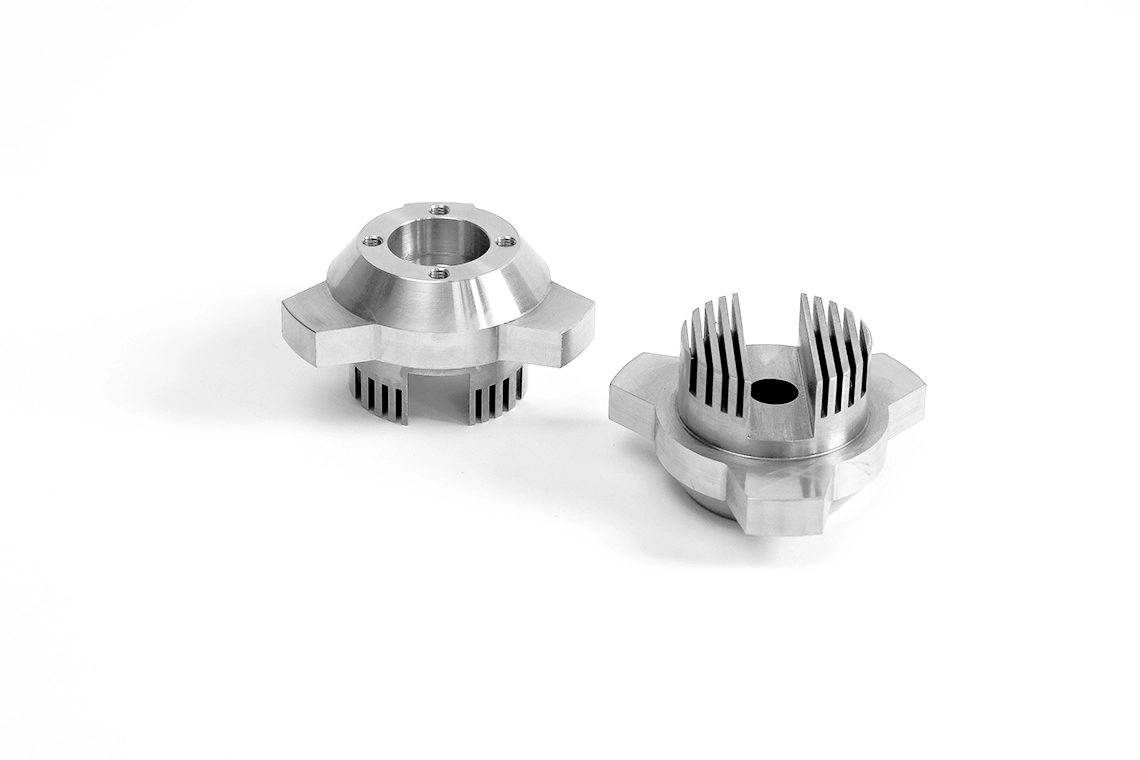

What is stainless steel? The strong, durable alloy
Stainless steel alloys have high strength, high ductility, excellent wear and corrosion resistance and can be easily welded, machined and polished. Depending on their composition, they can be either (essentially) non-magnetic or magnetic.
Let’s break down the types of stainless steel we offer on the platform.
-
Stainless steel 304 is the most common stainless steel alloy. It has excellent mechanical properties and good machinability. It’s resistant to most environmental conditions and corrosive media.
-
Stainless steel 316 is another common stainless steel alloy with similar mechanical properties to 304. It has a higher corrosion and chemical resistance though, especially to saline solutions (for example seawater), so it’s often better for dealing with harsher environments.
-
Stainless steel 2205 Duplex has the highest strength (twice that of common stainless steel alloys) and excellent resistance to corrosion. It’s used in extreme environments, with many applications in Oil & Gas.
-
Stainless steel 303 has excellent toughness, but lower corrosion resistance compared to 304. Due to its excellent machinability, it’s often used in high-volume applications, such as producing nuts and bolts for aerospace.
-
Stainless steel 17-4 (SAE grade 630) has mechanical properties comparable to 304. It can be precipitation hardened to a very high degree (comparable to tool steels) and has excellent chemical resistance, making it suitable for very high-performance applications, such as manufacturing blades for wind turbines.
Material characteristics:
-
Typical density: 7.7-8.0 g/cm3
-
Non-magnetic stainless steel alloys: 304, 316, 303
-
Magnetic stainless steel alloys: 2205 Duplex, 17-4

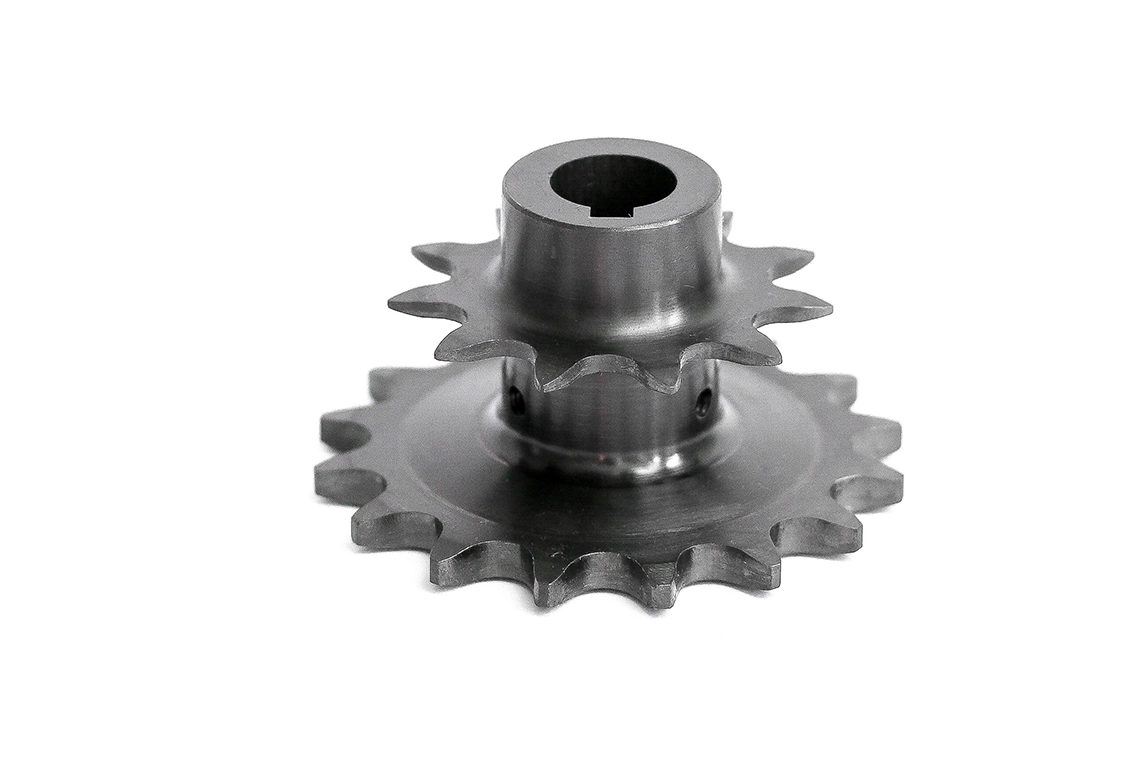

What is mild steel? The general purpose alloy
Mild steels are also known as low-carbon steels and have good mechanical properties, great machinability and good weldability. Because they are relatively low cost, manufacturers use them for many general purpose applications, like jigs and fixtures. Mild steels are susceptible to corrosion and chemical damage.
Let’s break down the types of mild steels available on the platform.
-
Mild steel 1018 is a general-use alloy with good machinability and weldability and excellent toughness, strength and hardness. It’s the most commonly used mild steel alloy.
-
Mild steel 1045 is a medium carbon steel with good weldability, good machinability and high strength and impact resistance.
-
Mild steel A36 is a common structural steel with good weldability. It’s suitable for a variety of industrial and construction applications.
Material characteristics:
-
Typical density: 7.8-7.9 g/cm3
-
Magnetic

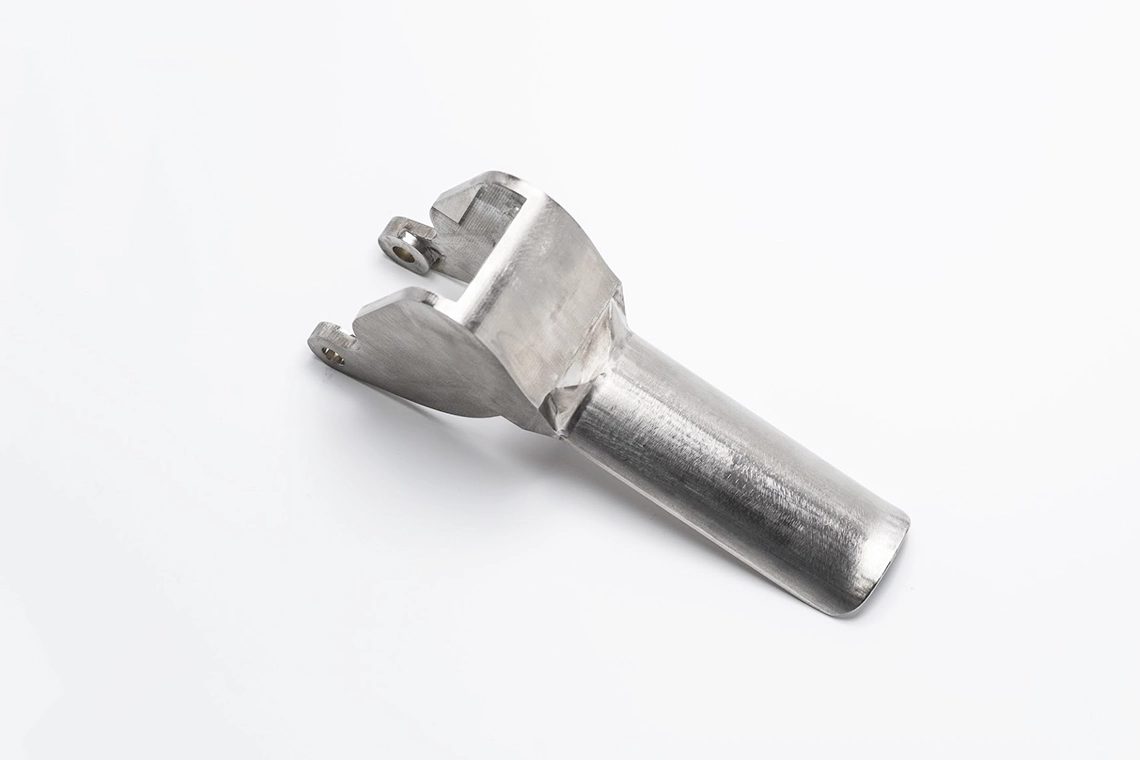

What is alloy steel? The tougher, wear-resistant alloy
Alloy steels contain other alloying elements in addition to carbon, resulting in improved hardness, toughness, fatigue and wear resistance. Similar to mild steels, alloy steels are susceptible to corrosion and attacks from chemicals
-
Alloy steel 4140 has good overall mechanical properties, with good strength and toughness. This alloy is suitable for many industrial applications but is not recommended for welding.
-
Alloy steel 4340 can be heat treated to high levels of strength and hardness, while maintaining its good toughness, wear resistance and fatigue strength. This alloy is weldable.
Material characteristics:
-
Typical density: 7.8-7.9 g/cm3
-
Magnetic

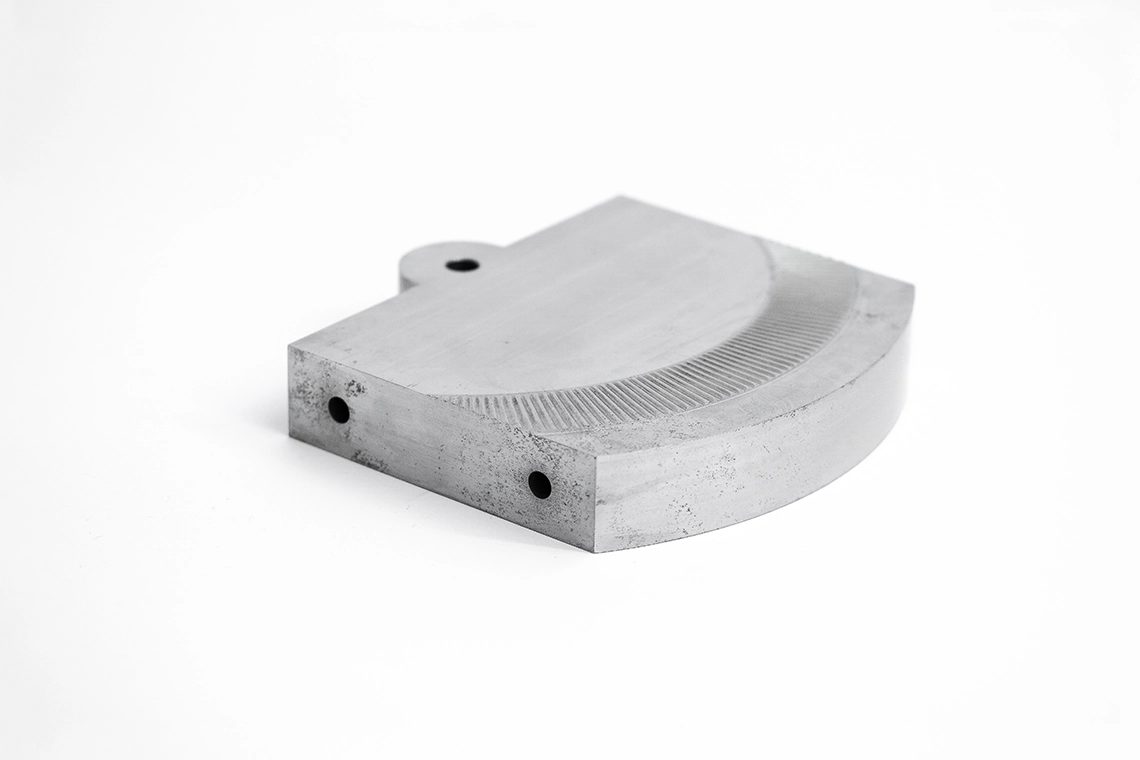

What is tool steel? The exceptionally tough and resistant alloy
Tool steels are metal alloys with exceptionally high hardness, stiffness, abrasion and thermal resistance, so long as they undergo heat treatment. They are used to create manufacturing tools (hence the name) such as dies, stamps and molds.
Let’s break down the tool steels we offer at Protolabs Network.
-
Tool steel D2 is a wear-resistant alloy that retains its hardness to a temperature of 425°C. It is commonly used to manufacture cutting tools and dies.
-
Tool steel A2 is an air-hardened general-purpose tool steel with good toughness and excellent dimensional stability at elevated temperatures. It’s commonly used to manufacture injection molding dies.
-
Tool steel O1 is an oil-hardened alloy with a high hardness of 65 HRC. It’s commonly used for knives and cutting tools.
Material characteristics:
-
Typical density: 7.8 g/cm3
-
Typical hardness: 45-65 HRC

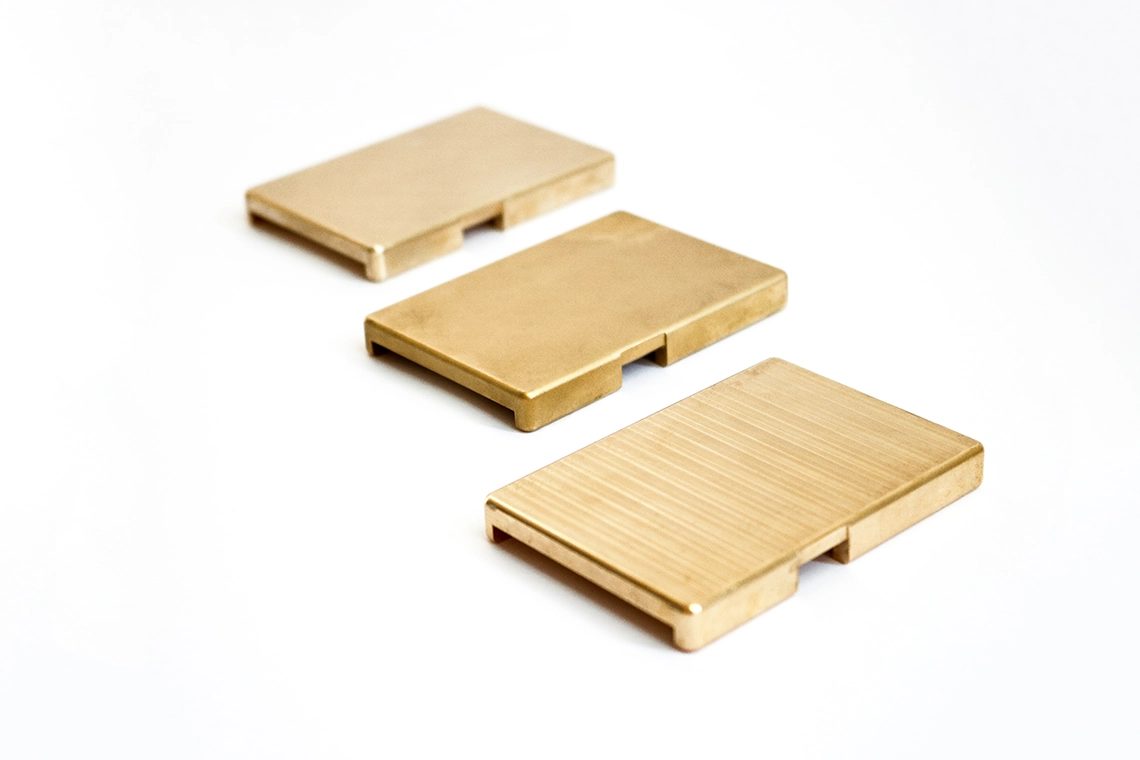

What is brass? The conductive & cosmetic alloy
Brass is a metal alloy with good machinability and excellent electrical conductivity, making it ideal for applications that require low friction. You’ll often find cosmetic brass parts used for architectural purposes (gold detailing(.
Here’s the brass we offer at Protolabs Network.
-
Brass C36000 is a material with high tensile strength and natural corrosion resistance. It’s one of the most easily machinable materials, so it’s often used for high-volume applications.
Material characteristics:
-
Typical density: 8.4-8.7 g/cm3
-
Non-magnetic

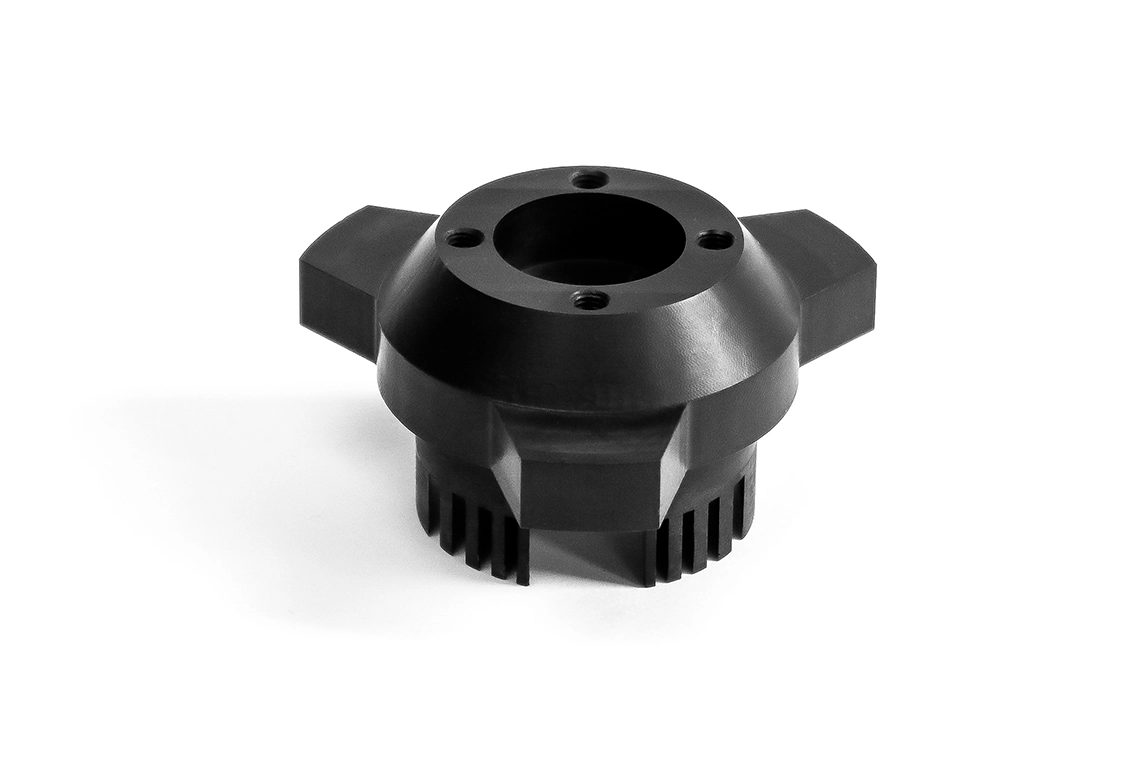

What is ABS? The prototyping thermoplastic
ABS is one of the most common thermoplastic materials offering good mechanical properties, excellent impact strength, high heat resistance and good machinability.
ABS has low density, making it ideal for lightweight applications. CNC machined ABS parts are often used as prototypes prior to mass-production with injection molding.
Material characteristics:
-
Typical density: 1.00-1.05 g/cm3

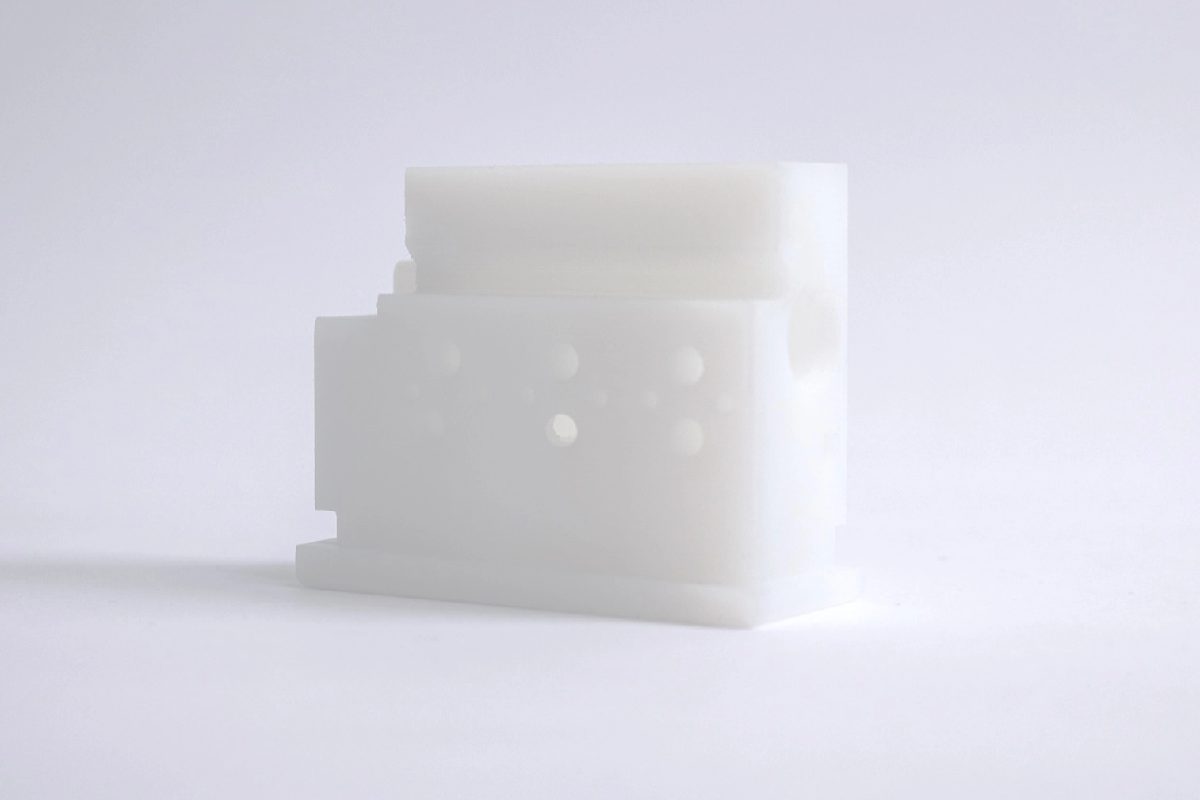

What is nylon? The engineering thermoplastic
Nylon (aka polyamide (PA)) is a thermoplastic that is often used for engineering applications, due to its excellent mechanical properties, good impact strength and high chemical and abrasion resistance. It’s susceptible to water and moisture absorption.
Nylon 6 and nylon 66 are the grades that are most commonly used in CNC machining.
Material characteristics:
-
Typical density: 1.14 g/cm3
What is polycarbonate? The thermoplastic with impact strength
Polycarbonate is a thermoplastic with high toughness, good machinability and excellent impact strength (better than ABS). It’s usually transparent, but can be dyed to a variety of colors. These factors make it ideal for a wide range of applications, including fluidic devices or automotive glazing.
Material characteristics:
-
Typical density: 1.20-1.22 g/cm3

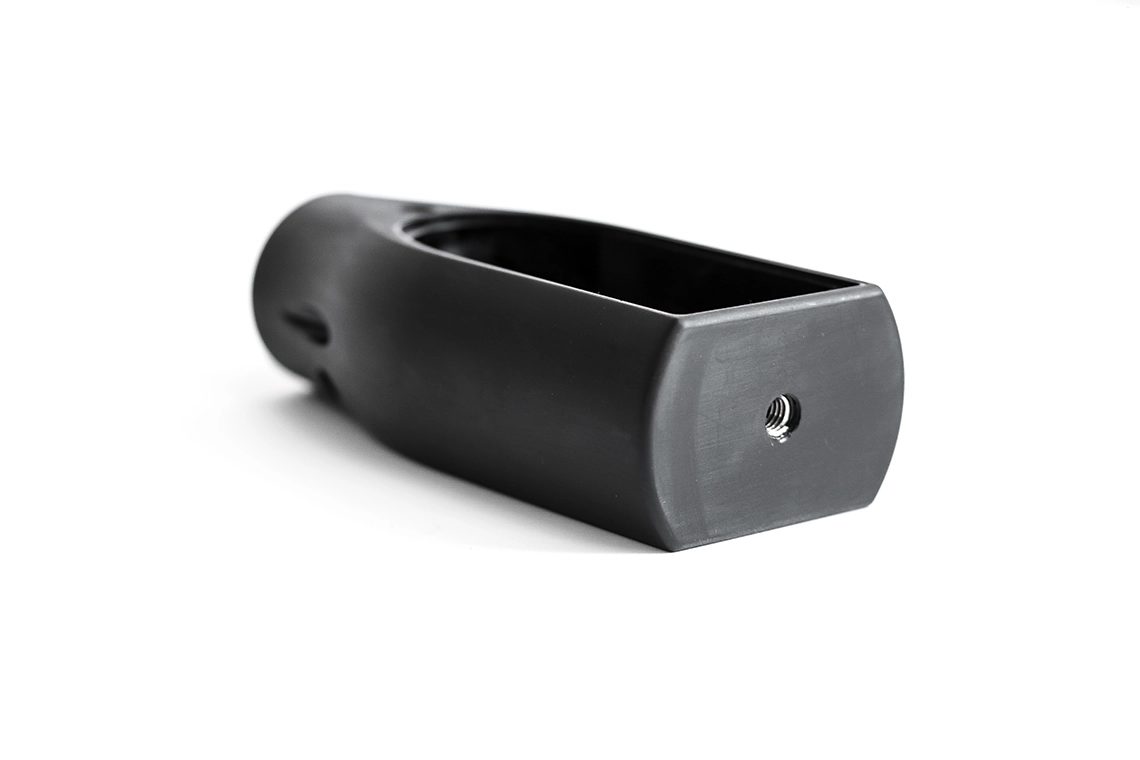

What is POM (Delrin)? The most machinable CNC plastic
POM is commonly known by the commercial name Delrin, and it is an engineering thermoplastic with the highest machinability among plastics.
POM (Delrin) is often the best choice when CNC machining plastic parts that require high precision, high stiffness, low friction, excellent dimensional stability at elevated temperatures and very low water absorption.
Material characteristics:
-
Typical density: 1.40-1.42 g/cm3

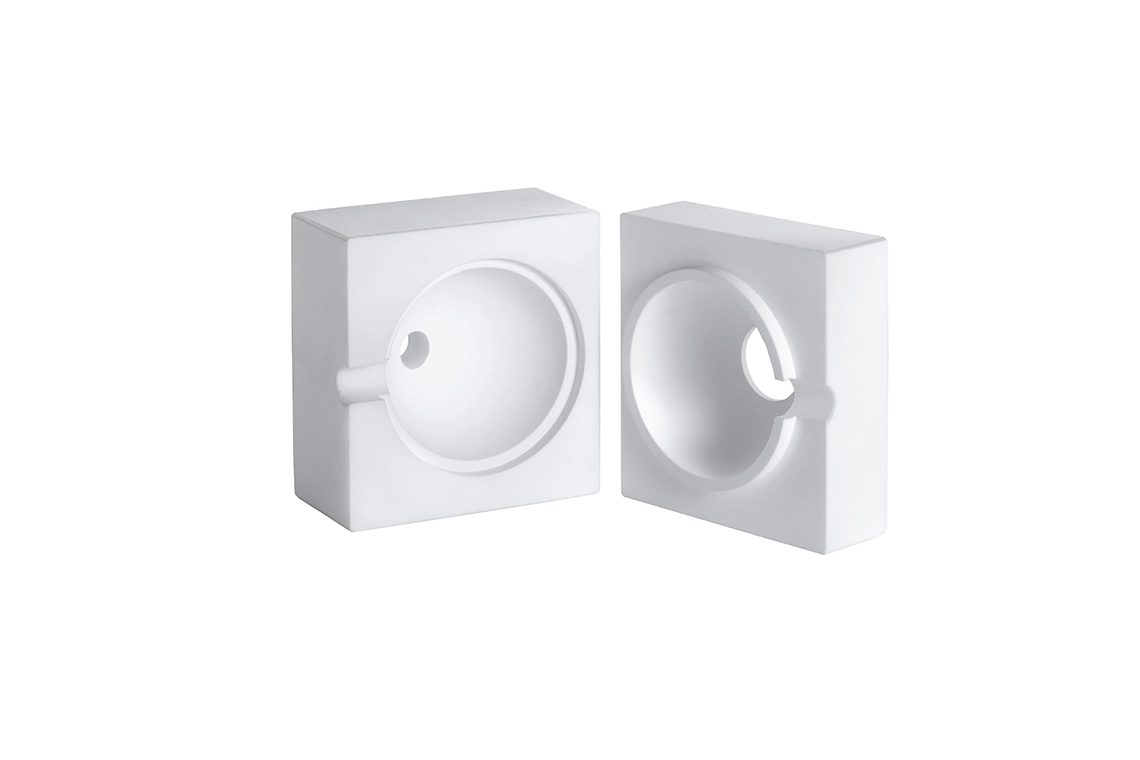

What is PTFE (Teflon)? The extreme temperature thermoplastic
PTFE, commonly known as Teflon, is an engineering thermoplastic with excellent chemical and thermal resistance and the lowest coefficient of friction of any known solid. It’s one of the few plastics that can withstand operational temperatures above 200 degrees Celsius and is an outstanding electrical insulator. It also has pure mechanical properties and is often used as a lining or insert in an assembly.
Material characteristics:
-
Typical density: 2.2 g/cm3

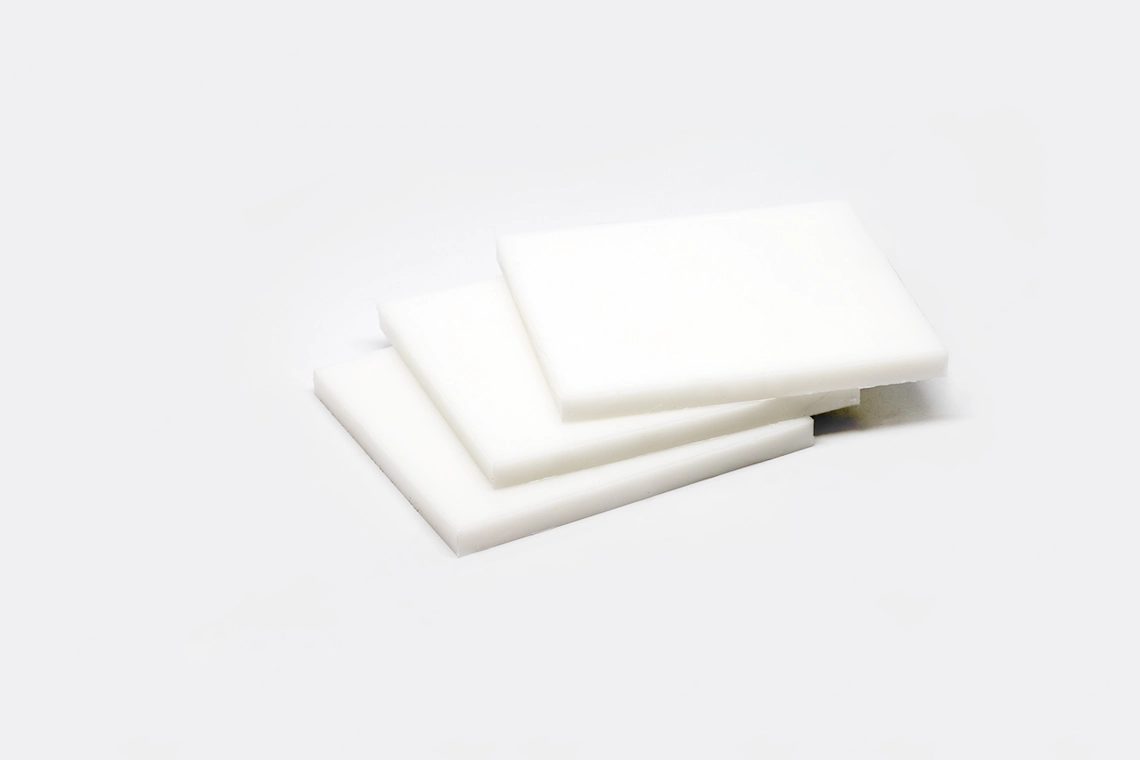

What is HDPE? The outdoor & piping thermoplastic
High-density polyethylene (HDPE) is a thermoplastic with a high strength-to-weight ratio, high impact strength and good weather resistance. HDPE is lightweight and is suitable for outdoor use and piping. Like ABS, it is often used to create prototypes before Injection Molding.
Material characteristics:
-
Typical density: 0.93-0.97 g/cm3

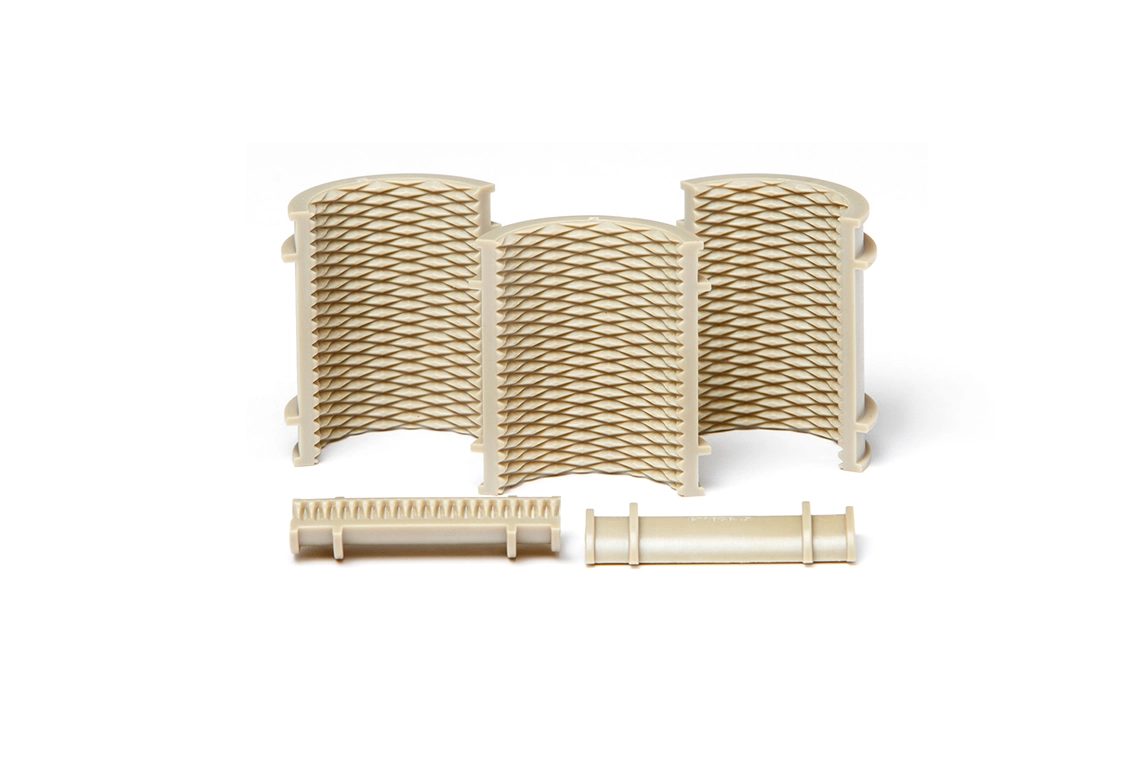

What is PEEK? The plastic to replace metal
PEEK is a high-performance engineering thermoplastic with excellent mechanical properties, thermal stability over a very wide range of temperatures and excellent resistance to most chemicals.
PEEK is often used to replace metal parts due to its high strength-to-weight ratio. Medical grades are also available, making PEEK suitable also for biomedical applications.
Material characteristics:
-
Typical density: 1.32 g/cm3
Our manufacturing experts can help you select the right material for your application
Frequently asked questions
What is the most cost-efficient material for CNC machining?
This depends a lot on the application in question, but overall Aluminum 6061 is the most common and lowest cost metal for CNC machining.
What’s the best plastic for CNC machining?
POM (Delrin) is the most economical plastic for CNC machining. This is thanks in part to the excellent machinability of thermoplastics.
What are the advantages of CNC machining with metals?
Metals are ideal for manufacturing applications that require high strength, hardness and/or reliable resistances to extreme temperatures.
What are the advantages of CNC machining with plastics?
While more common in 3D printing, plastics are ideal for CNC machining when you’re looking to produce lightweight parts with special material requirements. Plastics are also viable for producing prototypes (especially before you start making larger quantities with injection molding).
